Ceramic Automotive aR RS308-HB 32A 40A Fuses M6 M8 Installation Bolt 550VDC 690VAC
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | SINO FUSE |
| Chứng nhận: | UL |
| Model Number: | RS308-HB-2H |
Thanh toán:
| Minimum Order Quantity: | 10 |
|---|---|
| Giá bán: | 3~5USD |
| Packaging Details: | Carton |
| Delivery Time: | 2~3weeks |
| Payment Terms: | T-T |
| Supply Ability: | 1000K/PCS |
|
Thông tin chi tiết |
|||
| Hiệu suất đề cập đến: | IEC60269 và độ tin cậy về môi trường tuân thủ ISO8820, JASO D622 và GB/T31465 | sản phẩm ứng dụng: | Hệ thống kéo EV, chuyển đổi năng lượng, lưu trữ năng lượng, bộ sạc ô tô, v.v. |
|---|---|---|---|
| Bu lông lắp đặt: | M6 M8 | Khả năng phá vỡ: | AC100KA@COSφ0.2,DC50KA@L/ R≤10ms |
| Xếp hạng hiện tại: | 10A đến 710A | Vật liệu: | Gốm Đồng Bạc Thạch Anh Cát Vàng |
| Phương pháp gắn kết: | Bu lông vít | Chế độ cài đặt: | Động lực chặt chẽ được khuyến cáo |
| Làm nổi bật: | Ceramic automotive fuses 32A 40A,Ceramic fuses M6 M8 bolt installation,High voltage ceramic fuses 550VDC |
||
Mô tả sản phẩm

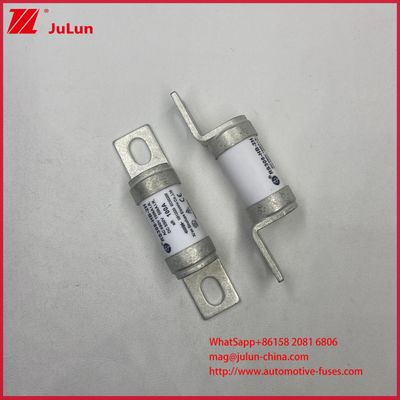

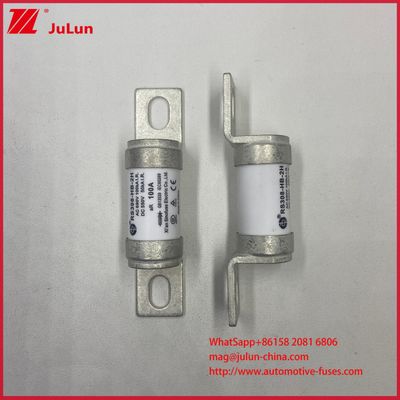

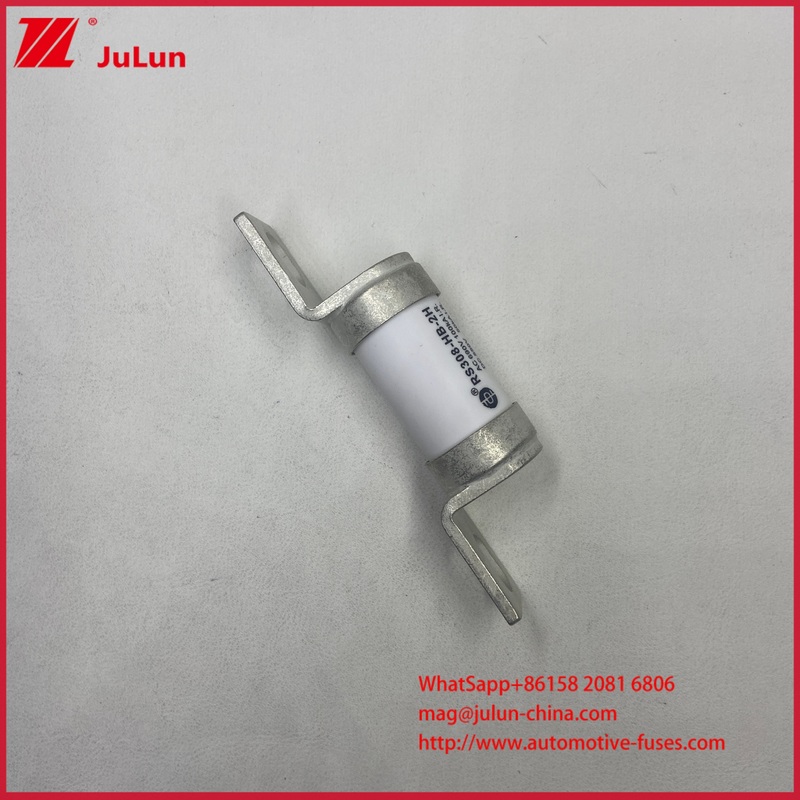

Ceramic Automotive aR RS308-HB 32A 40A Fuses M6 M8 Installation Bolt 550VDC 690VAC
Product Features
- Product Name: Ceramic Automotive Fuses
- Material Composition: Ceramic, Copper, Silver, Quartz Sand, Gold
- Performance Standards: Complies with IEC60269
- Environmental Reliability: Meets ISO8820, JASO D622, and GB/T31465 standards
- Feature: Small size with high current rating for short circuit protection
- Installation Mode: Recommended tight torque for secure fitting
- Rated Current Range: 10A to 710A
- Rated Voltage: AC690V / DC550V
- Applicable for: Energy Storage Capacitor protection
- Designed for: Ceramic Vehicle Fuses for automotive applications
Technical Parameters
| Performance | IEC60269 |
|---|---|
| Environmental Reliability | Complies With ISO8820, JASO D622, And GB/T31465 |
| Mounting Method | SCREW BOLT |
| Rated Voltage | AC690V/DC550V |
| Rated Current | 10A To 710A |
| Material | Ceramic, Copper, Silver, Quartz Sand, Gold |
| Application Product | EV Traction System, Power Conversion, Energy Storage, Car Charger And Etc. |
| Usage Category | AR |
| Installation Bolt | M6, M8 |
| Feature | Small Size With High Current Rating For Short Circuit Protection |
| Breaking Capacity | AC100KA@COSφ0.2,DC50KA@L/ R≤10ms |
Applications
The SINO FUSE Ceramic Automotive Fuses, model number RS308-HB-2H, are specifically designed to meet the demanding requirements of modern automotive and electric vehicle applications. Manufactured in China and certified by UL, these fuses offer reliable protection in high-voltage environments, with a rated voltage of AC690V/DC550V.
One of the primary application occasions for the SINO FUSE RS308-HB-2H is in electric vehicles drive the power system. As electric vehicles increasingly rely on advanced power systems, these ceramic fuses provide essential overcurrent protection to maintain system integrity and prevent damage.
Additionally, these automotive components are widely used in power conversion and energy storage systems. The fuses protect sensitive electronic circuits from short circuits and overloads, contributing to the overall reliability and safety of these systems.
Furthermore, the SINO FUSE ceramic fuses are also suitable for car chargers and other automotive electrical accessories. Their environmental reliability complies with ISO8820, JASO D622, and GB/T31465 standards, ensuring that they perform consistently under various temperature and humidity conditions.
Support and Services
- Installation: Always replace fuses with the same type and rating as specified by the vehicle manufacturer.
- Handling: Handle ceramic fuses with care to avoid physical damage and moisture exposure.
- Troubleshooting: Inspect circuits for underlying issues if fuses blow repeatedly.
- Replacement: Use genuine Ceramic Automotive Fuses from authorized suppliers.
- Disposal: Dispose of blown fuses according to local electronic waste regulations.
- Warranty: Standard warranty against manufacturing defects included.
